JOE Panel

JOE Wall Panel

Recycled • Super Flat • Customized • Superior Quality • Minimum Waste.

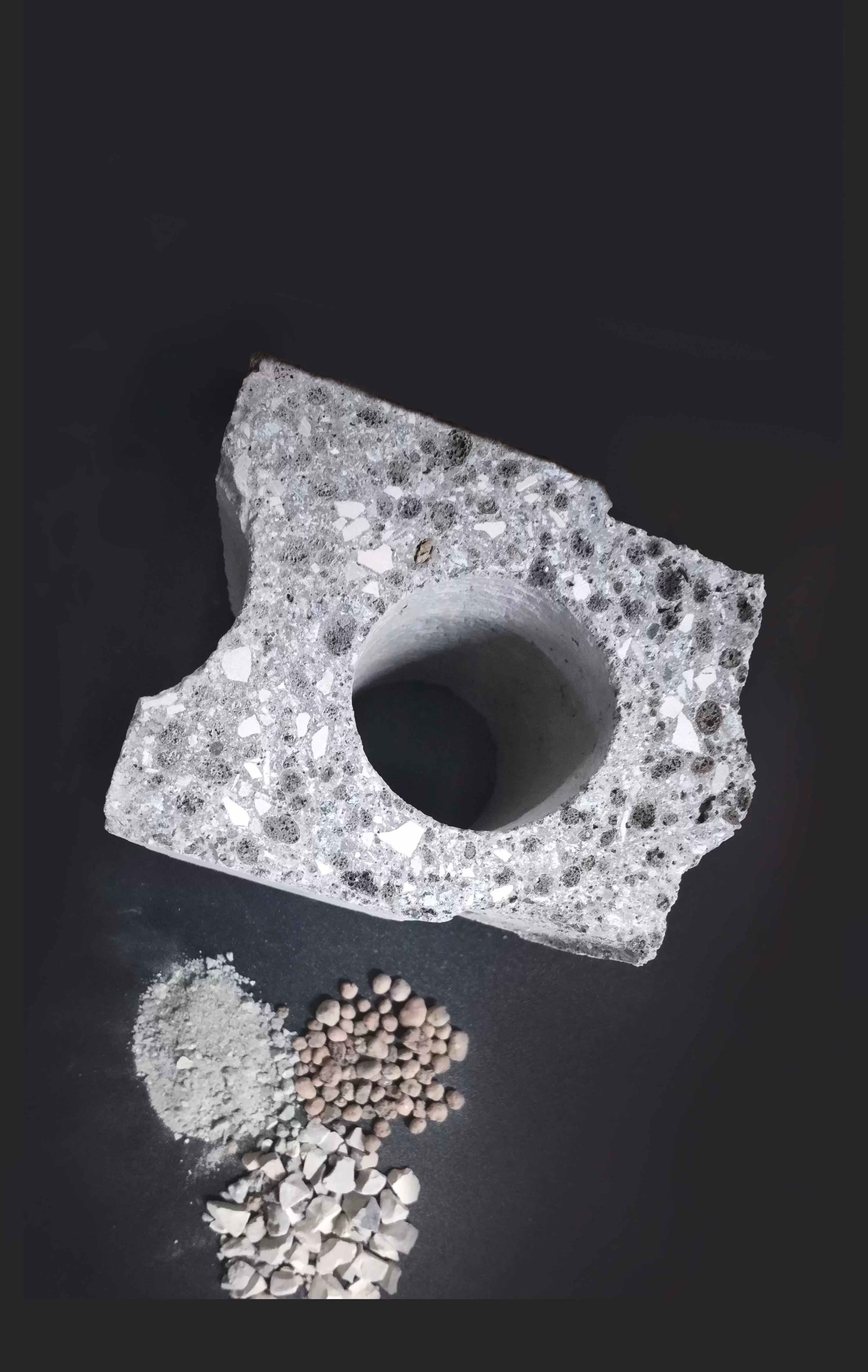

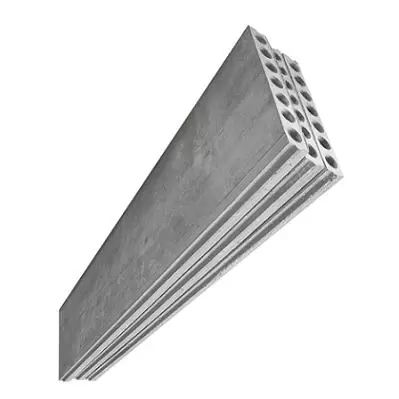

JOE Green Concrete Panel is a sustainable green concrete panel with better buildability, superior quality and minimum waste. It’s a precast hollow core lightweight concrete panel for internal and external wall. It has been certified as Singapore Green Label product, no. 022-015-0269 as eco-friendly building material, produced with minimum content of 30% - 80% Recycled Concrete Aggregates and other waste materials.

Available Thickness:
75mm, Ø40mm
90mm, Ø58mm
100mm, Ø40mm
100mm, Ø64mm
150mm, Ø40mm
200mm, Ø64mm

Product Description

Features and Benefits

JOE Green proven to be superior:

1. Super flat and required only Putty/Thin Skim Coat (Internal). BCA’s buildability score is 0.85 Labor Saving Index (LSI).

2. Customized up to 6m length to minimize waste, lintel, stiffer, labor & time to achieve productivity.

3. REINFORCED with High Tensile Steel Wire for Bending Strength and Safety in its usage as High Wall.

4. Truly content minimum of 30% - 80% Recycled Concrete Aggregates (RCAs).

5. Certified Singapore Green Label Product (Cert. No: 022-015-0269)

6. Scored HIGHER points for BCA Green Mark appraisal system.

7. Minimum and No chasing of recess required for easier and faster M&E installation.

8. Direct tiling and used in wet area due to low water absorption.

9. Installed for internal, external and parapet wall both laid horizontal and vertical.

10. Joint R&D with Professionals, Consultants and Manufacturers to develop new and Integrated wall System.

JOE Green Panel Design & Recess

XS/X5

Thickness : 75 - 200mm Nominal Weight : 128 - 281 kg/m2 Fire rating : 1 - 4 Hours Sound Insulation : STC 47 - 58 Nominal Density : 2,200 kg/m3 Water Absorption : 6% Compressive Strength : >40 MPa

Thickness : 75 - 200mm Nominal Weight : 93 - 204 kg/m2 Fire rating : 2 - 4 Hours Sound Insulation : STC 45 - 54 Nominal Density : 1,600 kg/m3 Water Absorption : 11% Compressive Strength : >25 MPa

Thickness : 75 - 200mm Nominal Weight : 84 - 166 kg/m2 Fire rating : 2 - 4 Hours Sound Insulation : STC 41 - 50 Nominal Density : 1,300 kg/m3 Water Absorption : 14% Compressive Strength : >15 MPa

Thickness : 75 - 200mm Nominal Weight : 58 - 115 kg/m2 Fire rating : 2 - 4 Hours Sound Insulation : STC 39 - 48 Nominal Density : 900 kg/m3 Water Absorption : 15% Compressive Strength : >5 MPa

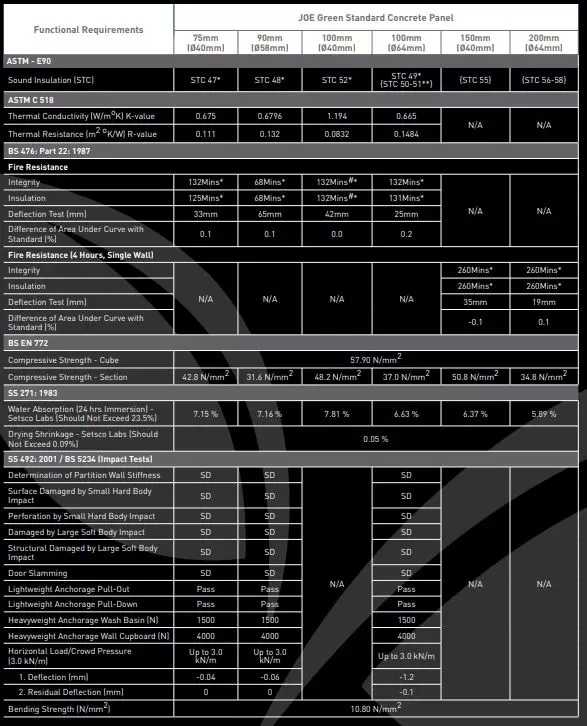

Product specification

CUSTOMIZED

Width

600mm, 300mm, 200mm, 100mm

Thickness Available

200mm, Ø64mm

150mm, Ø40mm

100mm, Ø64mm

100mm, Ø40mm

90mm, Ø58mm

80mm, Ø40mm

75mm, Ø40mm

Note: Solid Panels Available (Except 75mm) Customized Panels AVailable

JOE Standard Panel

200mm, Ø 64mm

150mm, Ø 40mm

100mm, Ø 64mm

100mm, Ø 40mm

90mm, Ø 58mm

80mm, Ø 40mm

75mm, Ø 40mm

70mm, Ø 40mm

Max Panel Height

max 6.1m (with wire)

max 6.6m (with wire)

max 5.2m (with wire)

max 6.6m (with wire)

max 4.7m (with wire)

max 3.3m

JOE Green Light Panel (X1 & x2)

X1 100mm, Ø 64mm

X2 100mm, Ø 64mm

Reinforcement Tensile Wire

Recess Design

Max Panel Height

TBA

Tensile strength min. 600 mpa(Ø2.7, Ø3, Ø4.5, Ø5)

Depth 6mm widht 40mm

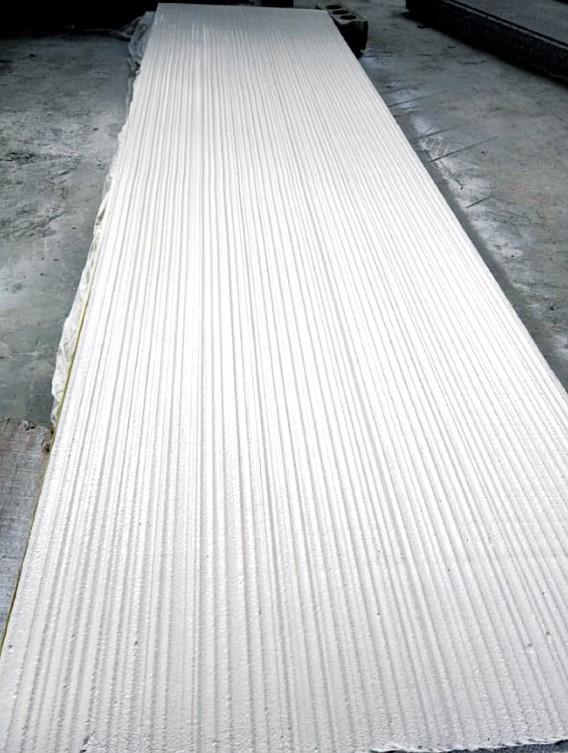

SURFACES APPEARANCE

a

L-JOINT

Thickness available

75mm, Ø 40mm

90mm, Ø 58mm

150mm, Ø 40mm

200mm, Ø 64mm

Dimension

A=290mm : B= 143mm

A=290mm : B= 185mm

A=290mm : B= 195mm

A=290mm : B= 270mm

A=290mm : B= 350mm

T-JOINT

Thickness available

75mm, Ø 40mm

90mm, Ø 58mm

100mm, Ø 64mm

150mm, Ø 40mm

200mm, Ø 64mm

Dimension

A=290mm : B= 143mm

A=290mm : B= 185mm

A=290mm : B= 195mm

A=290mm : B= 270mm

A=290mm : B= 350mm

Customized design & specification

To fit each unique project requirement specification such as sound insulation for sound barrier and cinema, fire resistant, blasting walls as well as groove line pattern. We could modify as solid panel, number of hollows, different kinds of steel diameters and embedded tensile wire from 8 to 12 wires. We also provide different kind of thickness, L and T Joint to prevent crack issues and ease of installation. JOE Green has been the only manufacturer could meet such specification.
